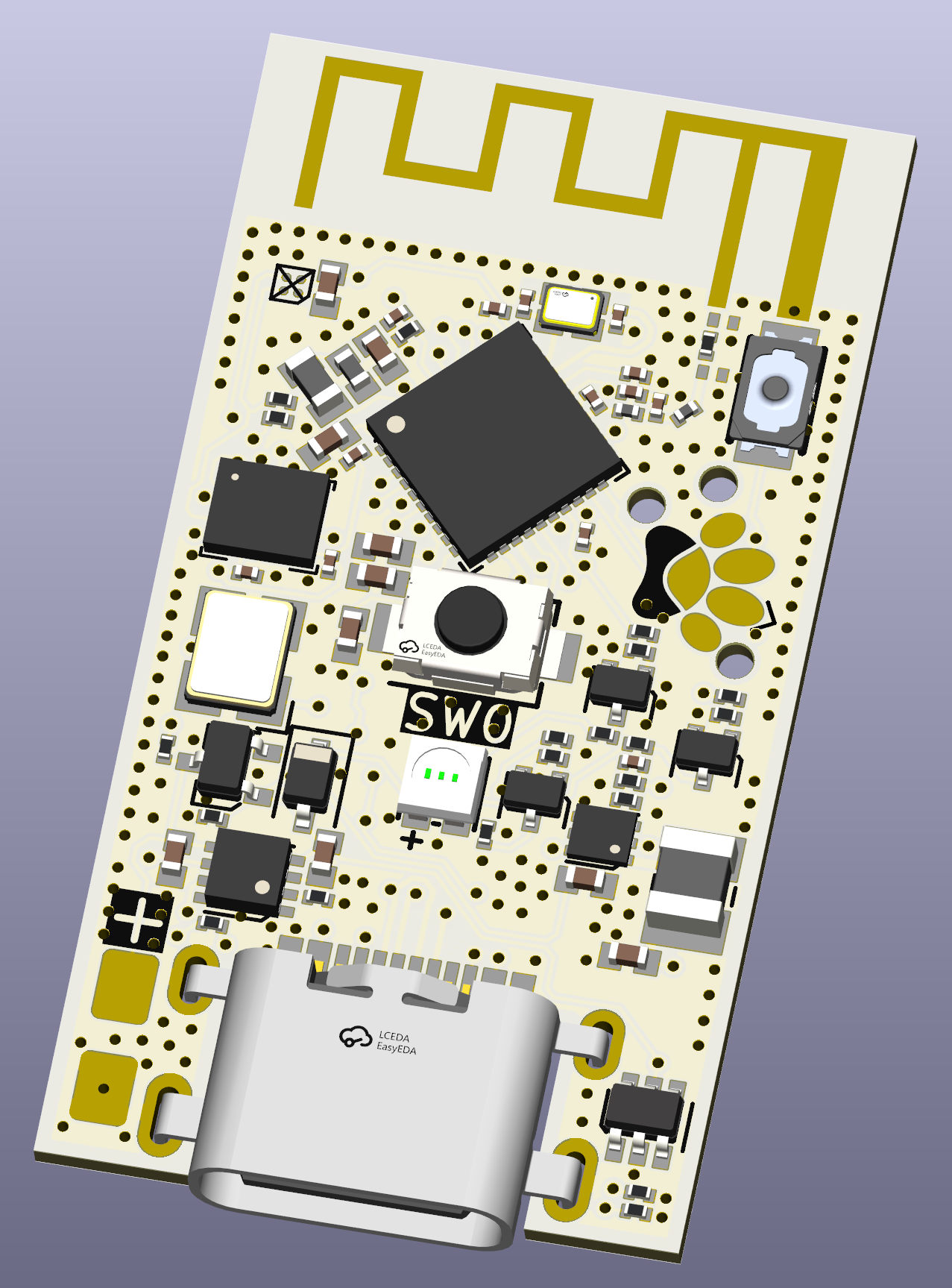

Mochi v4 LSM6DSV SlimeVR Compatible Tracker
Mochi v4 LSM6DSV SlimeVR Compatible Tracker - Image 2

Mochi v4 LSM6DSV SlimeVR Compatible Tracker

$12.00

ETA AND SHIPPING EARLY MARCH!

A high-quality, community-designed all-in-one tracker board; the same hardware used in the Ibis 2.0 trackers. Perfect for anyone wanting a cheap and reliable DIY option for SlimeVR.

All you need to bring it to life is a battery and a receiver. For build guidance, check the official Smol Slime documentation.

Available on backorder

SKU: MOCHIV4 Category: Brand:

Description

ETA AND SHIPPING EARLY MARCH!

Each Mochi v4 PCB is pre flashed and tested. Simply solder a battery (401230 LiPo 3.7v is recommended), put it in a case, and pair to a receiver. Each Mochi v4 comes with a 6 month limited warranty. Change of mind returns are not accepted, unless advised before shipping. Battery & case sold separately.

Follow the documentation @ slimevr.dev to pair your tracker and test it.

Mochi is the same footprint as the ProMicro boards widely used for DIY smol slimes, therefore will fit the same cases. Note that the battery position is different to stacked promicro builds!

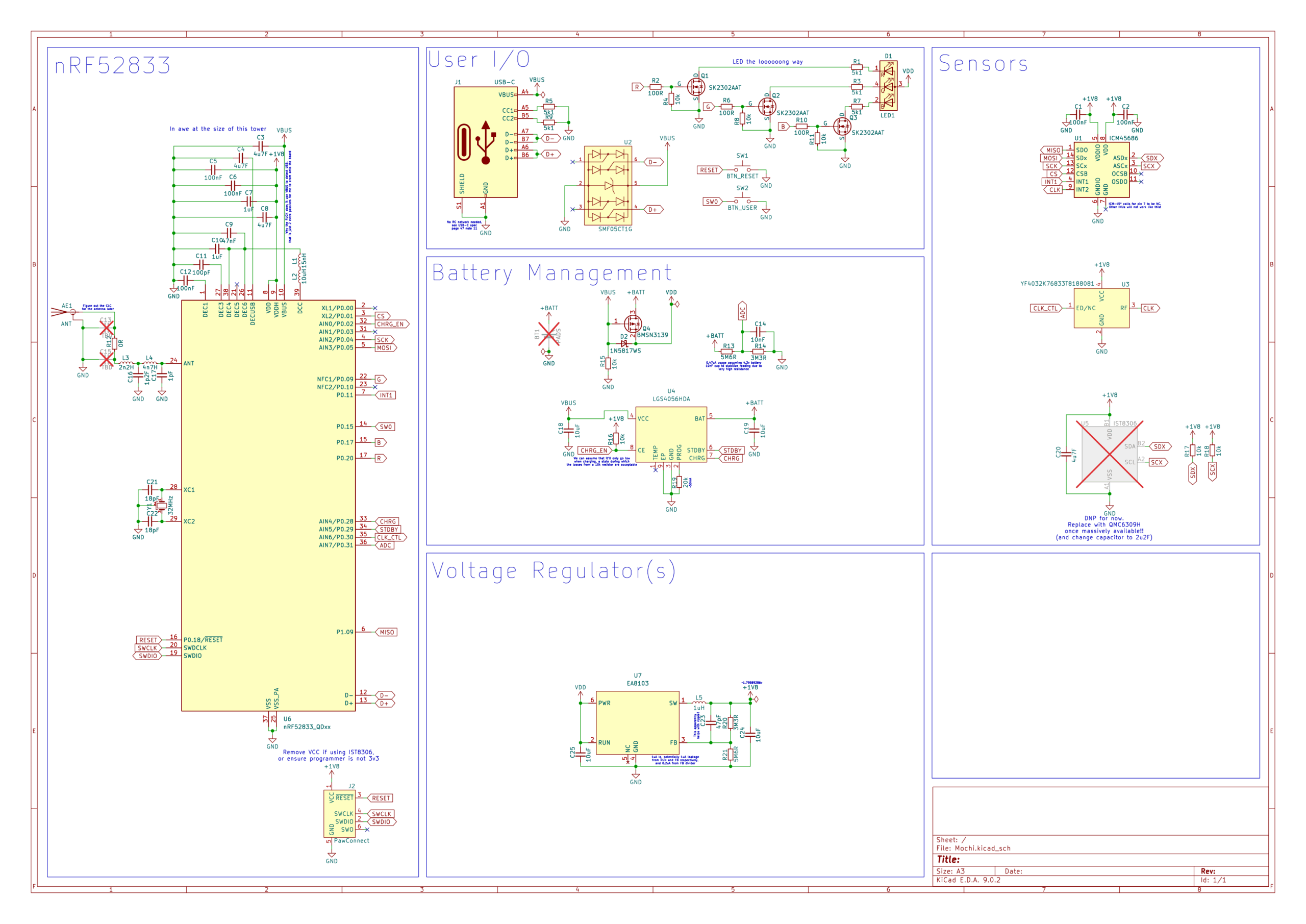

NOTE: Schematic is for the v3, but the only change is CLK is not used and the ICM has been replaced with the DSV

Additional information

Weight .01 kg
Dimensions 3 × 3 × .5 cm
IMU Model

LSM6DSV
USB Port Type

USEB-C
Pre-Flashed Firmware

SlimeNRF_Tracker_NoSleep_Mochi.uf2, includes bootloader
Battery Protection

Charging IC: LGS4056 (basic overcharge protection)
MOSFET: BMSN3139 for load switching. Important: Use with lithium polymer (LiPo) batteries only. Lithium-ion (18650) cells are unsafe for this board.
Battery Level Monitoring

Yes
Custom PCB Design

Mochi v4 by @Meia
Dimensions

Same as “supermini” trackers — fits most Ibis cases (button alignment differs slightly).
PCB Colour

Purple
